Rockfall Protection Mesh for Slopes & Railways
Engineered netting systems for cut slopes, highways and railways.
Send drawings/BOQ → get a project-specific factory quote and layout suggestion.
Full chain in-house (wire → high-tensile mesh → coating & accessories) keeps costs low and lead times fast.
Active & passive systems
If you complete the form below we will contact you as soon as possible.
Integrated Rockfall & Slope Protection Systems
In mountain corridors, rockfall, landslides, debris flow and avalanches can threaten highways, railways and nearby communities.

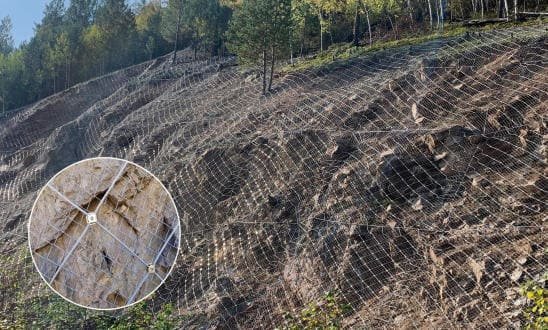

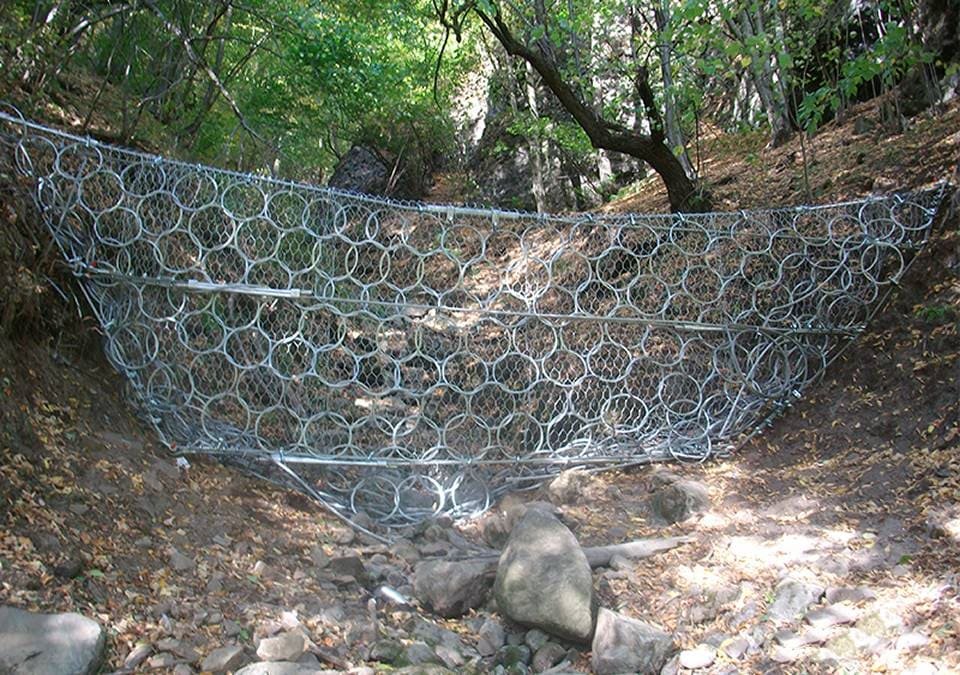

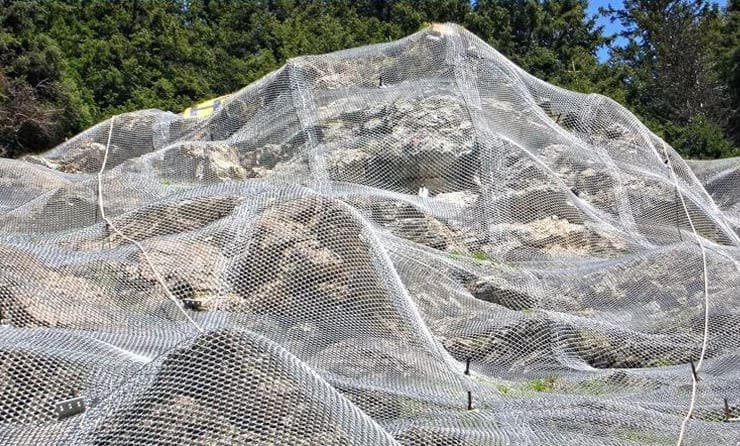

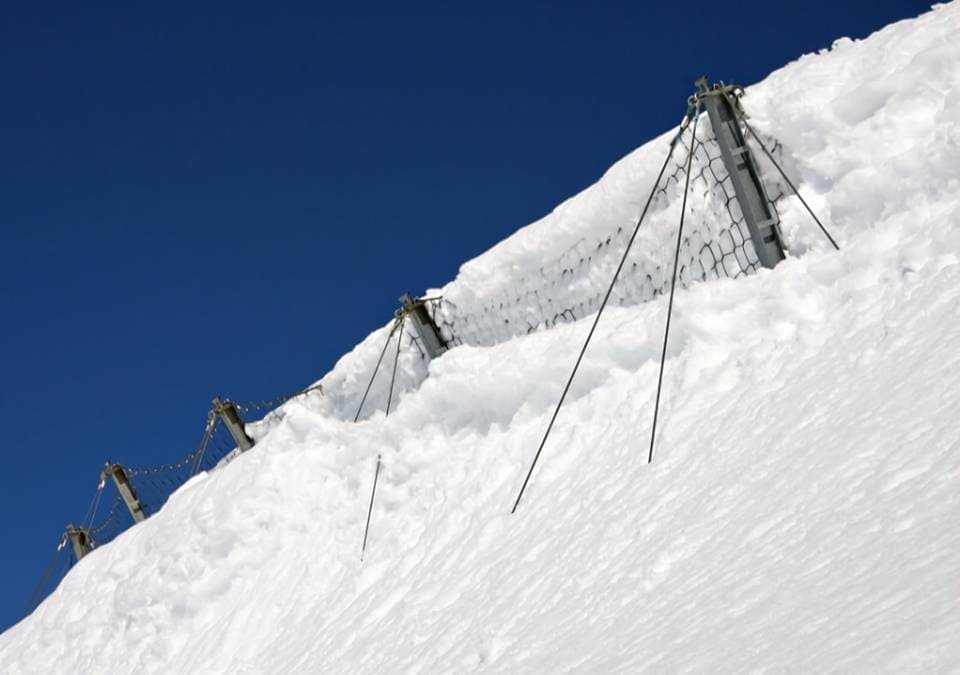

Zhongman provides complete geohazard solutions — rockfall fences, slope netting, debris-flow barriers and avalanche barriers — supplied as systems of mesh, posts, anchors and ropes to protect infrastructure and keep routes open.

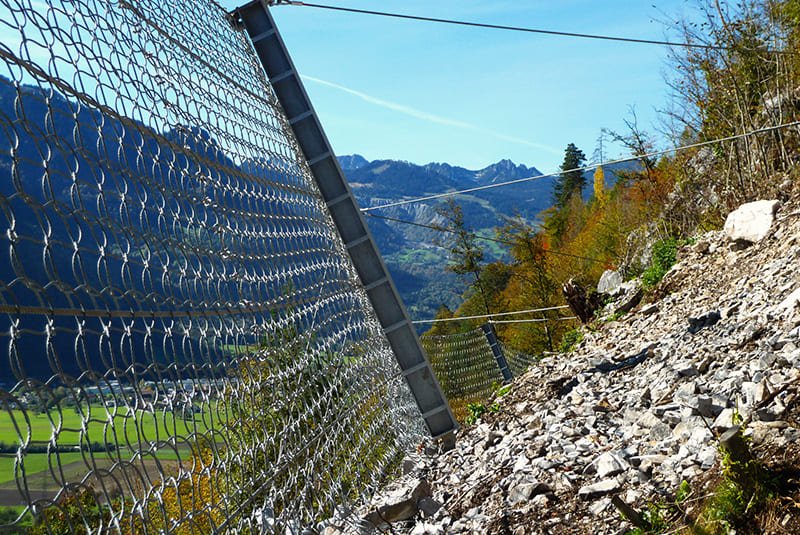

Rockfall Fence – Ring-Net Catch Systems
Ring-net and wire-rope barriers that intercept falling rocks before they reach the road or railway.
Energy classes up to 5000 kJ · Layouts from cut slopes to gullies · BOQ-based pricing with span-by-span kits.
01
System & Layout Design
Ring-net and wire-rope catch fences sized to your energy level, slope angle and bench geometry.
Typical fence heights 2–6 m; span lengths up to 30 m, with upslope retaining ropes for controlled deflection.
Components supplied as a coordinated system:
posts · base plates · wire ropes · brake elements · clamps · anchors.
02
Projects & Logistics
Standard energy classes and common heights are kept ready to dispatch, so most projects can start quickly.
Lead times for stocked classes are typically 7–15 days; OEM/ non-standard configurations follow project schedule.
Each fence is packed as a palletized kit per span, with labels showing span number, energy class and BOM reference,
so crews can unload, move and build in sequence along the line.
03
Materials & Compliance
High-tensile rings, ropes, clamps and shackles designed for rockfall applications.
Coatings: HDG to ISO 1461 or Zn-Al (Galfan) for enhanced durability in harsh climates.
Quality control covers coating mass, adhesion, rope strength, connection integrity and ring dimensions.
Dynamic performance testing can be carried out to international rockfall guidelines
（e.g. ETAG 027 or equivalent）；test reports and media are available on request.
Optional extras: debris mesh overlays, snow/ice mesh, access gates and warning markers, supplied to BOQ.
Rockfall Fence – Ring-Net Catch Systems
Energy-rated barriers for roads & railways.
System & Layout
Ring-net / wire-rope fences sized to your energy class and slope geometry.
Heights 2–6 m · spans up to 30 m · posts, ropes, brakes and anchors supplied as a full kit per span.
Projects & Logistics
Standard classes kept in stock; typical lead time 7–15 days.
Palletized kits labeled by span make it easy to move and build along the road or track.
FOB / CFR / CIF / DDP with consolidation options.
Materials & Compliance
High-tensile rings & ropes with HDG or Zn-Al coatings.
QC on coating mass, adhesion, rope strength and connections;
dynamic tests to international rockfall guidelines available with reports/videos.
500+ Projects
Roads & railways protected
7 Plants
Wire-to-system production
3–5 Day Dispatch
For standard classes
100+ Regions
Contractors & EPC clients
What geohazard and slope-protection clients say
Rockfall fences, slope netting and debris-flow barriers supplied as complete systems — mesh, posts, anchors and ropes matched to your BOQ.
Zhongman matched our ring-net fences to the designer’s energy class and span layout. The span-by-span kits made construction along the highway much faster.
EPC Project Manager · Flood Control, Pakistan
For a railway cutting we needed slope netting plus rockfall fences. Zhongman checked our quantities, optimized panel sizes and delivered everything in one consolidated shipment.
Highway Contractor · Slope Works, Vietnam
Debris-flow barriers had to be delivered before the rainy season. The team coordinated fabrication and shipping so that our contractor could start work ahead of schedule.
Water Authority Buyer · River Training, Kenya
Coating and rope certificates were required by our consultant. Zhongman provided test reports, batch IDs and layout drawings, which helped us pass approval smoothly.
Coastal Engineering Firm · Breakwater, Oman
We replaced older systems with higher energy classes. Zhongman’s BOQ-based pricing and in-house wire-to-mesh production kept the budget under control without changing the design.
Landscape Architect · Façade & Park, Greece
In a ski resort we combined avalanche barriers and rockfall fences. Numbered pallets per line made it easy for our crews to build each section in the correct order on steep terrain.
Distributor · Iberia
Cooperation Cases
What flood-control and defense clients say
BOQ-based pricing · In-house wire→welded mesh→coating→geotextile · Fast deployment support
Zhongman matched our ring-net fences to the designer’s energy class and span layout. The span-by-span kits made construction along the highway much faster.
EPC Project Manager · Flood Control, Pakistan
For a railway cutting we needed slope netting plus rockfall fences. Zhongman checked our quantities, optimized panel sizes and delivered everything in one consolidated shipment.
Highway Contractor · Slope Works, Vietnam
Debris-flow barriers had to be delivered before the rainy season. The team coordinated fabrication and shipping so that our contractor could start work ahead of schedule.
Water Authority Buyer · River Training, Kenya
Coating and rope certificates were required by our consultant. Zhongman provided test reports, batch IDs and layout drawings, which helped us pass approval smoothly.
Coastal Engineering Firm · Breakwater, Oman
Frequently Asked Questions
Find answers to commonly asked questions about our products and services.
What information do you need to quote my geohazard project?
Please send drawings/BOQ showing the type of system (rockfall fence, slope netting, debris-flow or avalanche barrier), energy class or design load, heights, span lengths, mesh type, rope diameters, anchor quantities, coating requirements, delivery term and destination.
Can you help check my quantities and layout?
Yes. We can review your BOQ against the drawings and highlight obvious gaps or overcounts. Final design responsibility remains with your engineer, but we’ll align kits, spans and labels to your approved layout.
What types of rockfall and slope systems can you supply?
We supply ring-net fences, cable-net fences, slope netting with anchors, debris-flow barriers and avalanche barriers, including posts, base plates, ropes, brake elements, clamps and anchors to match your specification.
How do you choose coating and corrosion protection?
Most projects use hot-dip galvanizing (HDG); coastal, high-humidity or long design-life projects may use Zn–Al (Galfan) or duplex systems. We recommend a coating based on environment, design life and budget and can follow your project spec exactly.
Do you keep stock? How fast can you deliver?
Common meshes, ropes, fittings and posts for standard energy classes are kept in stock. Typical dispatch time for standard classes is 7–15 days, while special designs follow the agreed project schedule.
Do you provide anchors and accessories as well?
Yes. We can supply complete kits including rock bolts, anchor plates, nuts, wire ropes, clamps, brake elements and mesh panels, packed and labeled per span or per line.
